Hydraulic Worm Gear recovery winches

Hydraulic worm gear recovery winches

Uses
boom trucks
Suitable for loaders
Suitable for excavator
Description

Hydraulic worm gear recovery winches, with pulling capacity from 2200 kg to 30000 kg (CE) also available NON-CE versions from 25000 kg to 35000 kg.

Technical table
Models CE EN 14492-1 First line pull Ø Rope Suggested rope Max rope Max pressure Max oil flow Max speed Weight A B C D E F
Um - kg mm m m bar l/min m/min kg mm mm mm mm mm mm
FIR 2.2 C WG* X 2200 8 15 19 130 40 8 26 230 160 212 82 357 470
FIR 2.2 L WG* X 2200 8 25 29 130 40 8 29 230 240 212 82 437 470
FIR 2.7 C WG X 2700 8 25 39 140 40 9 30 275 162 190 90 500 490
FIR 2.7 M WG* X 2700 8 30 51 140 40 9 35 275 211 190 90 700 490
FIR 2.7 L WG X 2700 8 40 87 140 40 9 45 275 350 190 90 820 490
FIR 3.0 C WG X 3000 9 15 17 130 40 9 26 230 160 212 82 357 470
FIR 3.0 L WG X 3000 9 22 26 130 40 9 29 230 240 212 82 437 470
FIR 3.6 C WG X 3600 10 24 24 130 40 7 30 275 162 190 90 500 490
FIR 3.6 M WG* X 3600 10 30 32 130 40 7 35 275 211 190 90 700 490
FIR 3.6 L WG X 3600 10 40 55 130 40 7 45 275 350 190 90 820 490
FIR 4.5 WG X 4500 11 30 81 150 60 9,5 64 402 297 202 102 735 585
FIR 5.2 WG X 5200 11 30 81 140 60 8,5 60 402 297 202 102 735 585
FIR 8.0 WG X 8000 14 55 74 160 100 9 125 488 278 270 126 860 655
FIR 9.0 WG - 9000 16 30 35 160 100 9 125 488 278 270 80 820 706
FIR 15.0 C WG X 15000 19 30 34 150 160 10 266 582 230 390 171 972 695
FIR 15.0 L WG X 15000 19 65 72 150 160 10 280 582 465 390 171 1225 695
FIR 20.0 WG X 20000 20 60 83 180 198 9,3 530 690 380 546 195 1204 983
FIR 25.0 WG - 25000 24 39 70 205 198 10,2 530 690 380 546 195 1204 983
FIR 30.0 WG X 30000 26 40 47 245 198 6,2 630 730 350 715 234 1240 821
FIR 35.0 WG - 35000 26 40 47 245 198 6,2 630 730 350 715 234 1240 821
FIR 45.0 WG - 45000 26 50 60 210 200 5,9 630 735 353 698 150 1174 851

* price of the product vat excluded

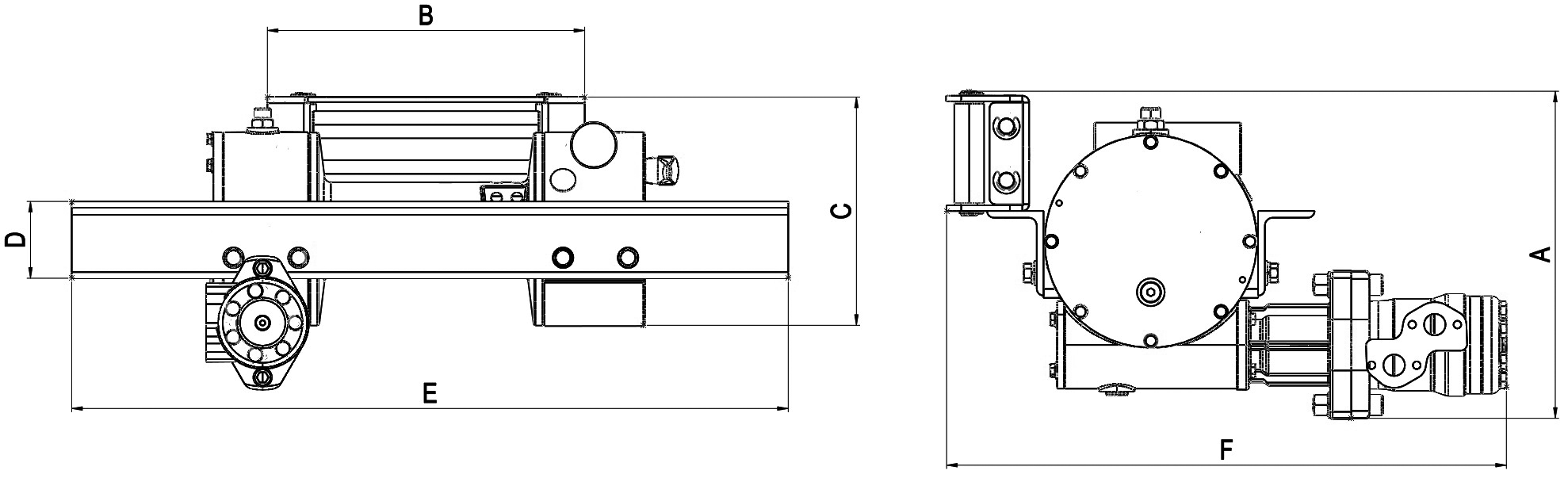

Technical schema
Documentation PDF
Catalog Hydraulic Worm Gear winches
