Hydraulic stabilizer

Hydraulic stabilizer

Additional stabilizers hydraulically extendible

Uses
boom trucks
Suitable for aerial platforms
Description

Last generation Hydraulic stabilizers with adjustable height of the cylinder with new locking system, standard on all models. Available with different length of the stabilizer cylinder.

Technical table
Models Crane R max Weight A B X hxb G C Min C Max I D E F H M
Um Ton/m daN Kg mm mm mm mm mm mm mm mm mm mm mm mm mm
EVO 28 3.3/L H 12>25 6300 209 2110 3310 3510 200x100 - 200 610 200 605 85 60 860 420
EVO 28 3.3 H 12>25 6300 199 2110 3310 3510 200x100 - 200 450 200 450 85 60 710 265
EVO 28 4.4/L H 12>25 6200 287 2120 4410 4610 200x200 - 200 610 200 605 85 60 860 425
EVO 28 4.4 H 12>25 6200 281 2120 4410 4610 200x200 - 200 450 200 450 85 60 710 270
EVO 38 3.3/L H 19>36 9000 283 2100 3300 3500 200x120 - 235 710 200 650 95 60 970 540
EVO 38 3.3 H 19>36 9000 255 2100 3300 3500 200x120 - 235 540 200 500 95 60 830 390
EVO 38 3.3/S H 19>36 9000 227 2100 3300 3500 200x120 - 235 440 200 400 95 60 680 240
EVO 38 4.7/L H 19>36 8600 350 2110 4710 4910 200x240 - 235 710 200 650 95 60 970 540
EVO 38 4.7 H 19>36 8600 340 2110 4710 4910 200x240 - 235 540 200 500 95 60 830 390
EVO 38 4.7/S H 19>36 8600 330 2110 4710 4910 200x240 - 235 440 200 400 95 60 680 240
EVO 48 5.0/L H 25>40 10500 425 2200 5000 5200 250x240 - 235 660 200 650 95 60 970 520
EVO 48 5.0 H 25>40 10500 416 2200 5000 5200 250x240 - 235 500 200 500 95 60 830 370
EVO 48 5.0/S H 25>40 10500 407 2200 5000 5200 250x240 - 235 390 200 400 95 60 680 220
EVO 68 5.0 H 40>60 14000 520 2200 5000 5200 300x240 - 230 615 200 650 105 70 930 400
EVO 68 5.0/S H 40>60 14000 526 2200 5000 5200 300x240 - 230 440 200 500 105 70 780 250
EVO 88 6.0 H 50>80 17000 883 2290 6000 6200 320x320 510 145 540 200 600 125 90 900 435
EVO 88 6.0/S H 50>80 17000 863 2290 6000 6200 320x320 510 145 370 200 440 125 90 750 300
EVO 108 6.9 H 70>100 18000 955 2315 6900 7100 320x360 525 70 450 200 600 125 90 900 490
EVO 108 6.9/S H 70>100 18000 935 2315 6900 7100 320x360 525 70 295 200 440 125 90 750 360

* price of the product vat excluded

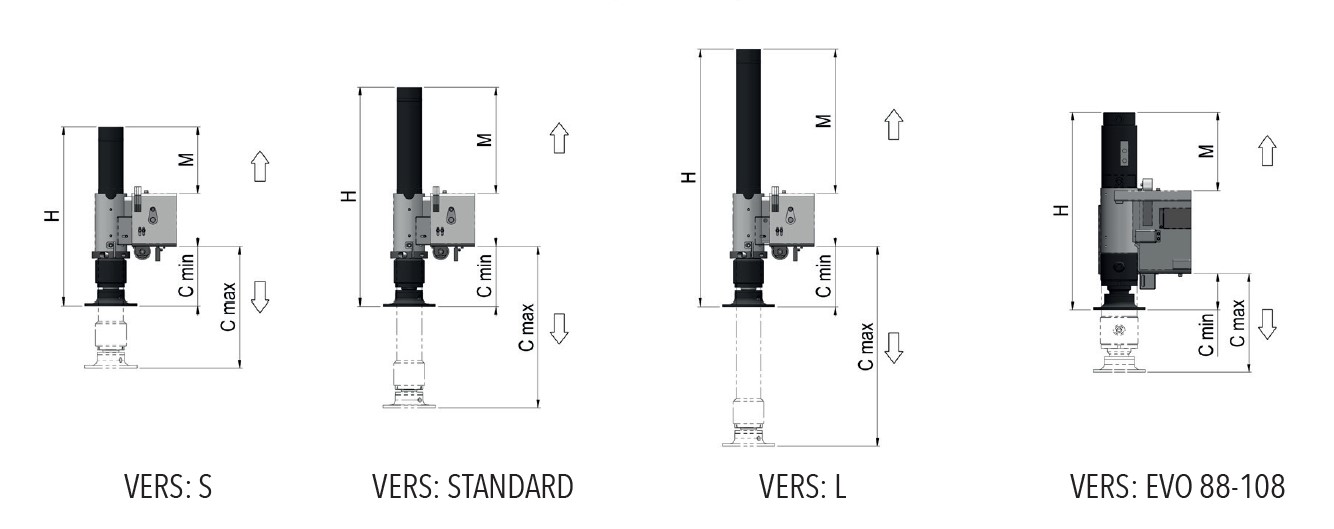

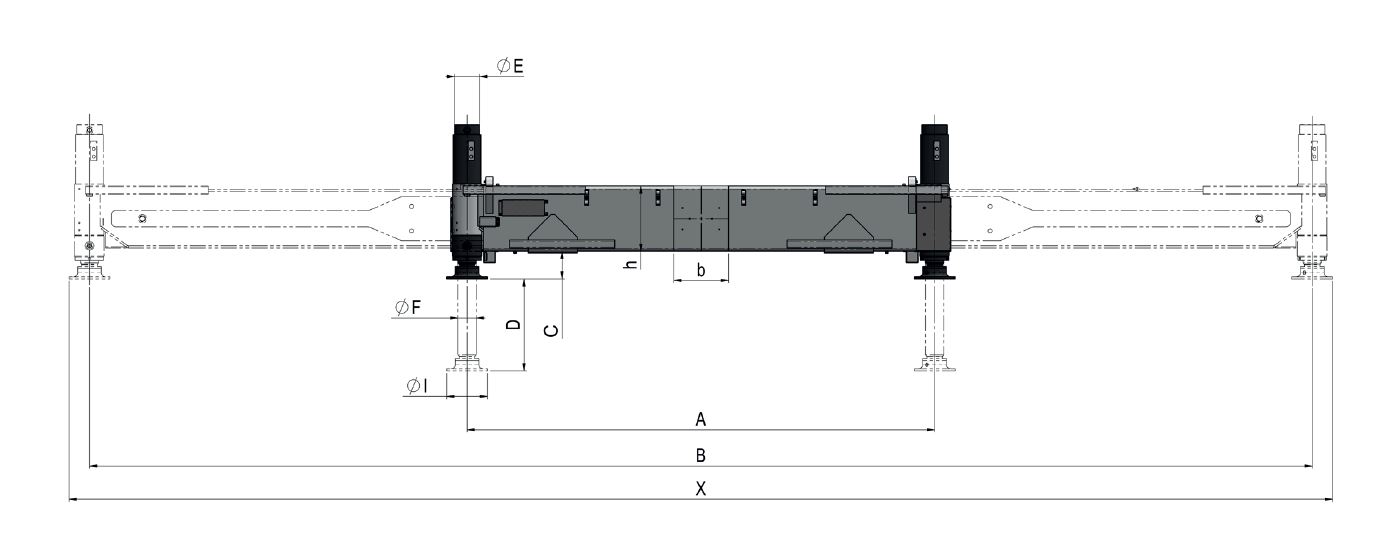

Technical schema
Documentation PDF
Catalog Hydraulic stabilizer
