Hydraulic Planetary recovery winches

Planetary hydraulic recovery winches

Uses
boom trucks
Suitable for loaders
Suitable for excavator
Description

Planetary hydraulic recovery winches with pulling capacities from 3600 kg to 20000 kg (CE) also available NON-CE version from 25000 kg. PB VERSION: PLANETARY GEAR WITH NEGATIVE BRAKE.

Technical table
Models CE EN 14492-1 First line pull Ø Rope Suggested rope Max rope Max pressure Max oil flow Max speed Weight A B C D E F
Um - kg mm m m bar l/min m/min kg mm mm mm mm mm mm
FIR 3.6 C PB X 3600 10 24 33 160 60 28 46 251 200 - 102 628 355
FIR 3.6 L PB X 3600 10 30 43 160 60 28 48 251 252 - 102 680 355
FIR 4.5 L PB X 4500 11 30 38 150 60 22 48 251 252 - 150 699 355
FIR 5.2 PB X 5200 11 30 54 130 60 16 52 270 252 - 130 700 361
FIR 6.2 PB X 6200 12 30 39 155 60 18 58 270 252 - 155 715 361
FIR 6.7 PB X 6700 12 30 39 165 60 18 58 270 252 - 165 715 361
FIR 10.0 PB X 10000 15 67 80 200 75 11,1 200 421 373 - 210 944 564
FIR 12.5 PB X 12500 15 67 80 200 75 9,2 200 421 373 - 210 951 564
FIR 15.0 PB X 15000 18 35 50 200 75 7 210 420 373 - 210 960 571
FIR 20.0 PB X 20000 22 40 60 210 75 9,2 410 533 450 - 198 1228 655
FIR 25.0 PB - 25000 22 40 60 210 75 7,3 410 533 450 - 198 1228 655

* price of the product vat excluded

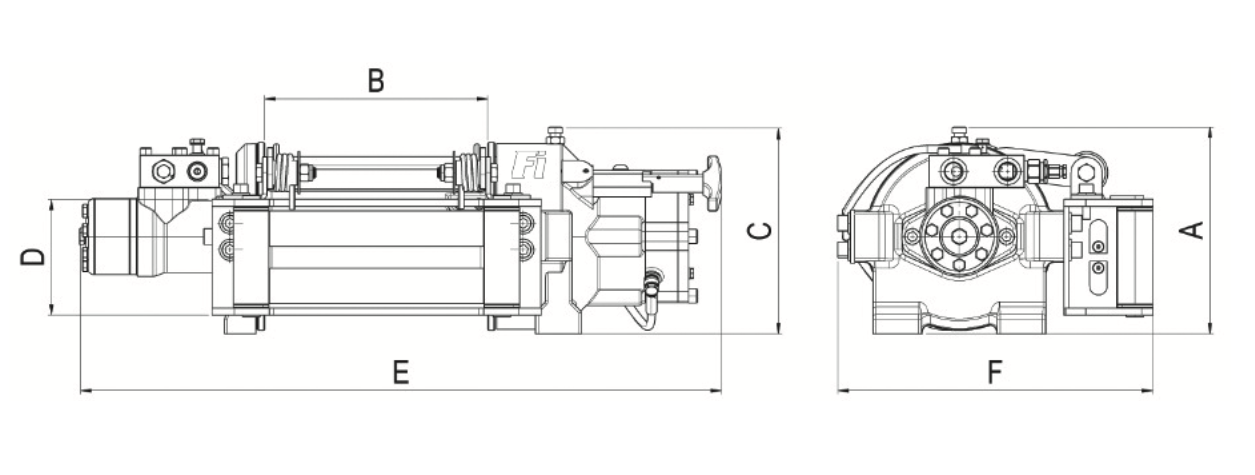

Technical schema
Documentation PDF
Catalog Hydraulic planetary winches
