Hydraulic lifting winches FW60 SX - FW250 SX

Hydraulic lifting whinches - SX series

Uses
Suitable for aerial platforms
Suitable for loaders
Suitable for perforators
Description

New hydraulic LIFTING WINCHES SX series with improved lifting capacity and lesser encumbrance. Lifting capacity from 600 kg to 2500 kg. Available with cable pressing and microswitch, load limiting device and various accessories to complete the product. Available with verius rope lenght according to the winch capacity.

Technical table
Models 1st line pull Last line pull Rope layers Rope size Rope lenght Rope speed Weight Max flow Pressure Motor Engine torque Max torque on the drum Max back pressure on return line Gear ratio Full opening brake pressure A B Ø C D E Ø F G H Ø I
Um daN daN n° mm m m/min kg l/min bar cc/rev Nm Nm bar - bar mm mm mm mm mm mm mm mm mm
FW60 SX 600 400 6 6 80 55 40 36 150 80.3 160 805 2 5.4 24 136 289 180 261 318 258 170 250 15
FW60 SXL 600 400 6 6 150 55 56 36 150 80.3 160 805 2 5.4 24 320 460 180 261 318 258 170 250 15
FW80 SX 800 500 6 6 80 50 43 36 160 80.3 165 814 2 5.5 24 136 289 180 261 318 258 170 250 15
FW80 SXL 800 500 6 6 150 50 58 36 160 80.3 165 814 2 5.5 24 320 460 180 261 318 258 170 250 15
FW100 SX 900 580 5 7 58 45 45 36 170 80.3 170 820 2 5.75 24 136 289 180 261 318 258 170 250 15
FW100 SXL 900 580 5 7 128 45 60 36 170 80.3 170 820 2 5.75 24 320 460 180 261 318 258 170 250 15
FW120 SX 1100 820 5 7 78 55 56 45 160 100 205 1250 2 6.7 24 158 346 210 286 343 286 170 250 15
FW150 SX 1300 850 4 8 54 50 58 45 170 100 208 1270 2 7 24 158 346 210 286 343 286 170 250 15
FW180 SX 1800 1150 5 9 78 32 83 60 150 100 205 2500 2 10.5 25 190 380 220 322 384 322 170 250 15
FW180 SXL 1800 1150 5 9 155 32 98 60 150 100 205 2500 2 10.5 25 372 560 220 322 384 322 364 250 15
FW220 SX 2050 1370 5 10 71 30 86 60 160 100 210 2600 2 13.8 25 190 380 220 322 384 322 170 250 15
FW220 SXL 2050 1370 5 10 140 30 100 60 160 100 210 2600 2 13.8 25 372 560 220 322 384 322 364 250 15
FW250 SX 2325 1560 4 11 50 28 87 60 180 100 230 2700 2 15,1 25 190 380 220 322 384 322 170 250 15
FW250 SXL 2325 1560 4 11 98 28 102 60 180 100 230 2700 2 15.1 25 372 560 220 322 384 322 364 250 15

* price of the product vat excluded

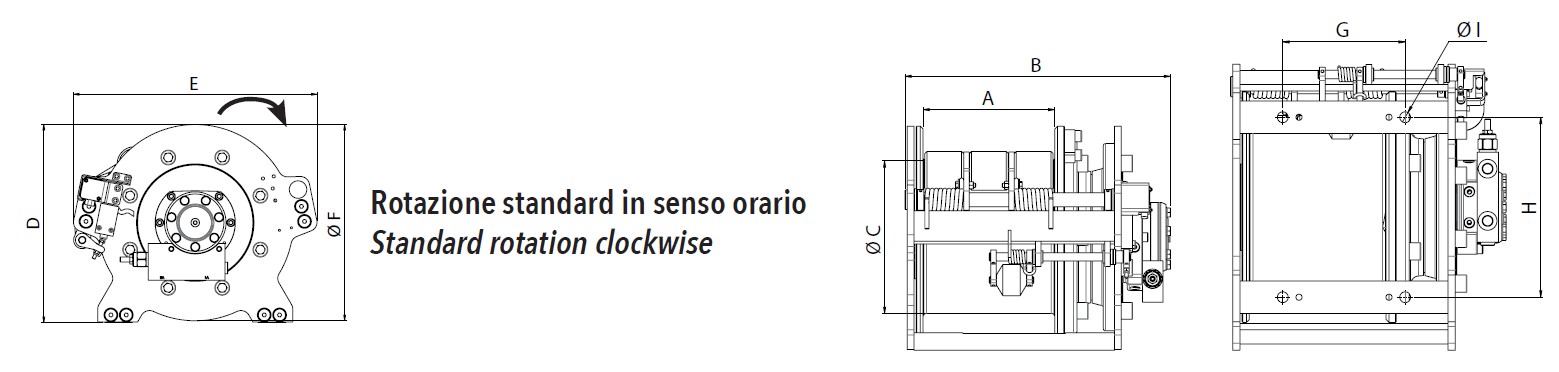

Technical schema
