FW207BX - FW270BX

Hydraulic lifting winches FW207BX - FW270BX

Hydraulic lifting whinches - BX series

Uses
Suitable for aerial platforms
Suitable for loaders
Suitable for perforators
Description

New hydraulic LIFTING WINCHES BX series not suitable for lifting people. Available with verius rope lenght according to the winch capacity.

Technical table
Models 1st line pull Last line pull Rope layers Rope size Rope lenght Weight Pressure Continuative Oil Flow Max torque on the drum Gear ratio A B Ø C D E Ø F G H Ø I
Um daN daN n° mm m kg bar l/min Nm - mm mm mm mm mm mm mm mm mm
FW 207 BX 2100 1590 5 10 80 90 170 40 2625 16,2 190 430 240 363 430 360 170 250 15
FW 207 BX L 2100 1590 5 10 150 110 170 40 2625 16,2 372 600 240 363 430 360 384 250 15
FW 270 BX 2600 1920 5 11 70 90 170 40 3260 16,2 190 430 240 363 430 360 170 250 15
FW 270 BX L 2600 1920 5 11 130 110 170 40 3260 16,2 372 600 240 363 430 360 384 250 15

* price of the product vat excluded

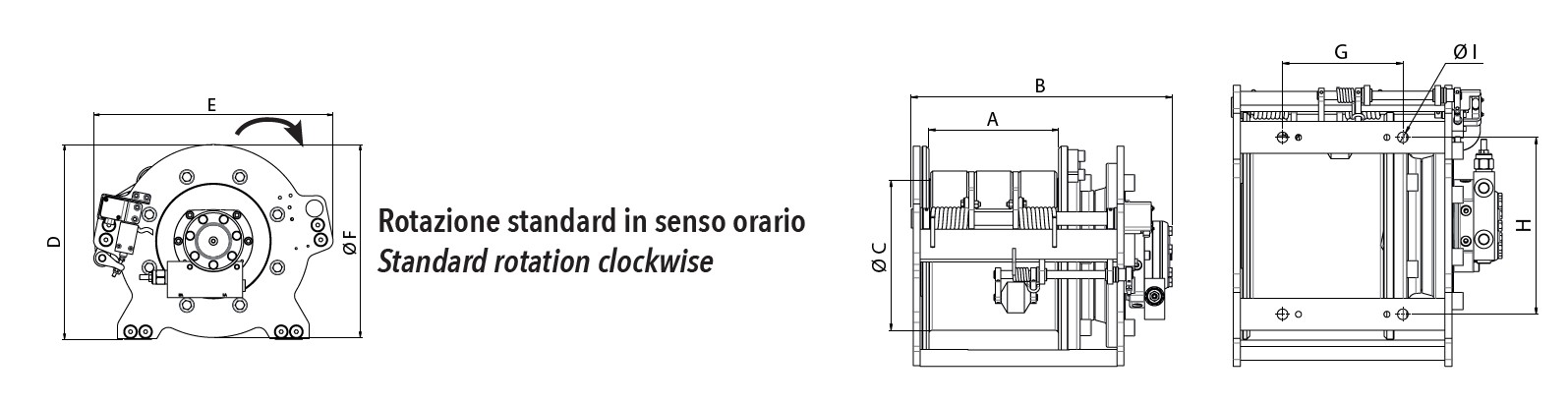

Technical schema
Documentation PDF
Catalog FW207BX - FW270BX
