FT 220/A 5V R CI

FT 220/A 5V R CI

5 Way hydraulic hose reels with radial attachment.

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Suitable for excavator
Suitable for offroad
Description

5 Way hydraulic hose reels with radial attachment. Model with indipendent casings = 2 casings and 2 indipendent springs on a single shaft.

Technical table
Models A B Max reel lenght (mm) and connections - 3/8" Weight C C1 L
Um Ø mm mm Ø 3/8" kg Ø mm Ø mm Ø mm
FT 220/A470 5V R CI 470 110 8000 60 54(3/8") 36(3/8") 310(3/8")
FT 220/A500 5V R CI 500 110 10000 66 54(3/8") 36(3/8") 310(3/8")
FT 220/A530 5V R CI 530 110 11000 67,5 54(3/8") 36(3/8") 310(3/8")
FT 220/A560 5V R CI 560 110 12500 70 54(3/8") 36(3/8") 310(3/8")
FT 220/A625 5V R CI 625 110 16000 74 54(3/8") 36(3/8") 310(3/8")
FT 220/A650 5V R CI 650 110 22000 76,5 54(3/8") 36(3/8") 310(3/8")
FT 220/A715 5V R CI 715 110 27000 81 54(3/8") 36(3/8") 310(3/8")
FT 220/A790 5V R CI 790 110 18000 89 54(3/8") 36(3/8") 310(3/8")

* price of the product vat excluded

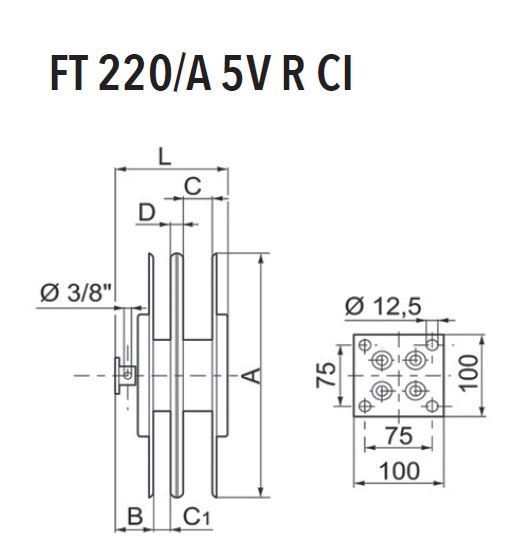

Technical schema
Documentation PDF
Catalog FT 220/A 5V R CI
