FT 190/A 4V R CI

FT 190/A 4V R CI

4 Way hydraulic hose reels with radial attachment.

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Suitable for excavator
Suitable for offroad

Description

4 Way hydraulic hose reels with radial attachment. Model with indipendent casings = 2 casings and 2 indipendent springs on a single shaft.

Technical table
Models A B Max reel lenght (mm) and connections - 1/4" Max reel lenght (mm) and connections - 3/8" Weight C L D
Um Ø mm mm Ø 1/4" Ø 3/8" kg Ø mm Ø mm Ø mm
FT 190/A325 4V R CI 325 100 4000 3000 25 27(1/4") 36(3/8") 260(1/4") 260(3/8") 74(1/4") 56(3/8")
FT 190/A385 4V R CI 385 100 6000 5000 27 27(1/4") 36(3/8") 260(1/4") 260(3/8") 74(1/4") 56(3/8")
FT 190/A400 4V R CI 400 100 7200 5500 28 27(1/4") 36(3/8") 260(1/4") 260(3/8") 27(1/4") 36(3/8")
FT 190/A420 4V R CI 420 100 8500 6500 29 27(1/4") 36(3/8") 260(1/4") 260(3/8") 74(1/4") 56(3/8")
FT 190/A470 4V R CI 470 100 11000 8000 30,5 27(1/4") 36(3/8") 260(1/4") 260(3/8") 74(1/4") 56(3/8")
FT 190/A500 4V R CI 500 97 - 10000 47 27(1/4") 36(3/8") 260(1/4") 260(3/8") 74(1/4") 56(3/8")
FT 190/A530 4V R CI 530 97 - 11000 49 27(1/4") 36(3/8") 260(1/4") 260(3/8") 74(1/4") 56(3/8")
FT 190/A560 4V R CI 560 97 - 12500 50 27(1/4") 36(3/8") 260(1/4") 260(3/8") 74(1/4") 56(3/8")
FT 190/A625 4V R CI 625 97 - 16000 54 27(1/4") 36(3/8") 260(1/4") 260(3/8") 74(1/4") 56(3/8")
FT 190/A650 4V R CI 650 97 - 18000 49,5 27(1/4") 36(3/8") 260(1/4") 260(3/8") 74(1/4") 56(3/8")
FT 190/A715 4V R CI 715 97 - 22000 59 27(1/4") 36(3/8") 260(1/4") 260(3/8") 74(1/4") 56(3/8")

* price of the product vat excluded

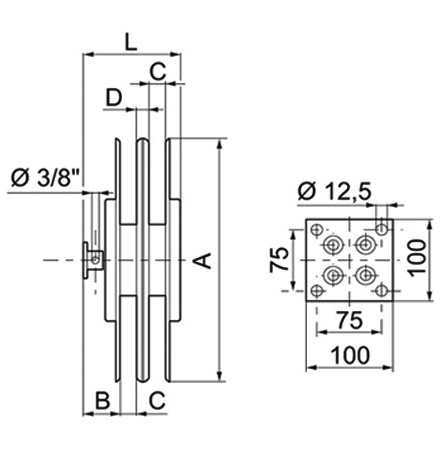

Technical schema
Documentation PDF
Catalog FT 190/A 4V R CI
