FT 150/A 2V R

FT 150/A 2V R

2 Way hydraulic hose reels with radial attachment

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Suitable for excavator
Suitable for offroad

Description

2 Way hydraulic hose reels with radial attachment

Technical table
Models A B Max reel lenght (mm) and connections - 1/4" Max reel lenght (mm) and connections - 1/2" Max reel lenght (mm) and connections - 3/8" Weight C L
Um Ø mm mm Ø 1/4" Ø 1/2" Ø 3/8" kg Ø mm Ø mm
FT 150/A470 2V R 470 97 11000 6500 8000 23,5 46(1/2") 36(3/8") 177(1/2") 177(3/8")
FT 150/A500 2V R 500 84 12500 8000 10000 24 46(1/2") 36(3/8") 177(1/2") 177(3/8")
FT 150/A520 2V R 520 97 14000 8500 10500 24,2 46(1/2") 36(3/8") 177(1/2") 177(3/8")
FT 150/A530 2V R 530 84 14500 9000 11000 26 46(1/2") 36(3/8") 177(1/2") 177(3/8")
FT 150/A560 2V R 560 97 16000 10000 12500 27 46(1/2") 36(3/8") 177(1/2") 177(3/8")
FT 150/A625 2V R 625 84 21500 12500 16000 29 46(1/2") 36(3/8") 177(1/2") 177(3/8")
FT 150/A650 2V R 650 97 23500 14000 18000 30 46(1/2") 36(3/8") 177(1,2") 177(3/8")
FT 150/A715 2V R 715 84 - 17500 22000 31,5 46(1/2") 36(3/8") 177(1/2") 177(3/8")
FT 150/A790 2V R 790 97 - 21000 27000 33 46(1/2") 36(3/8") 177(1/2") 177(3/8")

* price of the product vat excluded

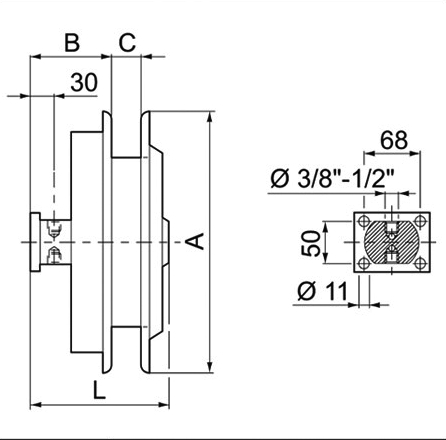

Technical schema
Documentation PDF
Catalog FT 150/A 2V R
