FT 100/A F EYE

FT 100/A F EYE

2 Way hydraulic hose reels with frontal attachment

Uses
boom trucks
Suitable for crane
Suitable for aerial platforms
Suitable for excavator
Suitable for offroad
Description

2 Way hydraulic hose reels with frontal attachment. For hoses with eye-fitting and "bondes seals" washers.

Technical table
Models A B Max reel lenght (mm) and connections - 1/4" Max reel lenght (mm) and connections - 3/8" Weight C
Um Ø mm mm Ø 1/4" Ø 3/8" kg Ø mm
FT 100/A200 2V F EYE 200 65 1500 - 6(1/4") 27(1/4") 36(3/8")
FT 100/A270 2V F EYE 270 65 2500 1800 9(1/4") 9,5(3/8") 27(1/4") 36(3/8")
FT 100/A300 2V F EYE 300 65 4000 2700 9,5(1/4") 10,5(3/8") 27(1/4") 36(3/8")
FT 100/A325 2V F EYE 325 65 5000 3500 11(1/4") 12(3/8") 27(1/4") 36(3/8")
FT 100/A385 2V F EYE 385 65 7000 5500 12(1/4") 15(3/8") 27(1/4") 36(3/8")
FT 100/A235 2V F EYE 235 65 2000 - 6(1/4") 27(1/4") 36(3/8")
FT 100/A340 2V F EYE 340 65 5200 4000 12,5(1/4") 16(3/8") 27(1/4") 36(3/8")

* price of the product vat excluded

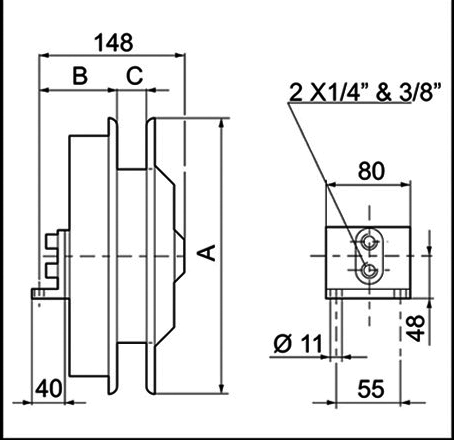

Technical schema
Documentation PDF
Catalog FT 100/A F EYE
