FSG

FSG polyp grabs

Polyp grabs.

Uses
boom trucks
Suitable for loaders
Suitable for excavator
Description

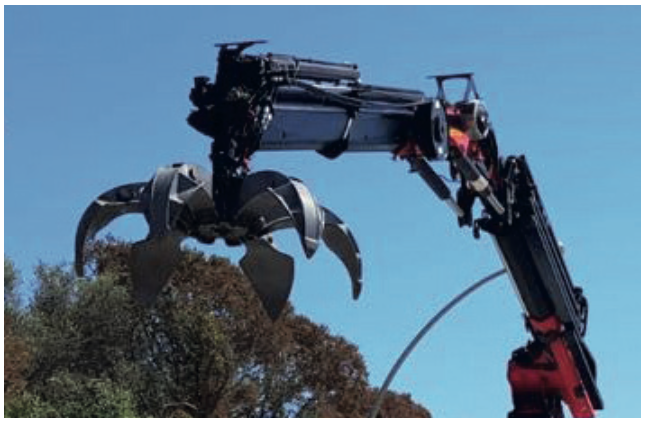

Polyp grabs for waste, scrap and different materials, suitable for industrial vehicles. All models are available with hardox bits. * crane capacity at max reach ** excavator weight

Technical table
Models Capacity Weight Teeth A B C D E Load capacity Pressure Suitable for loader Suitable for excavator Suggested rotator
Um lt kg n° mm mm mm mm mm kg bar ton* ton** type
FSG 90/4 90 81 4 650 1010 430 580 1090 750 200 0,15 - 0,3 1,0 - 2,0 FR 35
FSG 110/4 110 105 4 730 1130 480 650 1230 900 250 0,25 - 0,5 2,0 - 3,0 FR 35
FSG 110/5 110 118 5 730 1130 480 650 1230 1500 250 0,25 - 0,5 2,0 - 3,0 FR 35
FSG 120/4 120 112 4 743 1240 497 700 1340 900 250 0,3-0,6 2,5-4,0 FR 35
FSG 120/5 120 130 5 743 1240 497 700 1340 1500 250 0,3-0,6 2,5-4,0 FR 35
FSG 160/4 160 230 4 900 1300 550 750 1400 1500 250 0,3 - 0,8 3,0 - 5,0 FR 50
FSG 160/5 160 265 5 900 1300 550 750 1400 2000 250 0,4 -1,0 3,0 - 5,0 FR 50
FSG 160/6 160 310 6 900 1300 550 750 1400 2500 250 0,4-1,0 3,0-5,0 FR 50
FSG 210/4 210 250 4 920 1560 600 890 1650 1500 250 0,5 -1,1 3,0 - 6,0 FR 50
FSG 210/5 210 275 5 920 1560 600 890 1650 2000 250 0,6 -1,2 3,0 - 6,0 FR 50
FSG 210/6 210 320 6 920 1560 600 890 1650 2500 250 0,6 -1,2 3,0 - 6,0 FR 50
FSG 270/4 270 310 4 1000 1490 650 900 1640 2000 250 0,7-1,3 4,0-7,0 FR 50
FSG 270/5 270 350 5 1000 1490 650 900 1640 2500 250 0,8 -1,6 4,0 - 7,0 FR 85 SX
FSG 270/6 270 390 6 1000 1490 650 900 1640 3000 250 0,8 -1,6 4,0 - 7,0 FR 85 SX
FSG 330/4 330 375 4 1120 1630 680 930 1760 2500 250 1,0-2,0 6,0 - 9,0 FR 85 SX
FSG 330/5 330 415 5 1120 1630 680 930 1760 3000 250 1,0-2,0 6,0 - 9,0 FR 85 SX
FSG 330/6 330 460 6 1120 1630 680 930 1760 3000 250 1,0-2,0 6,0 - 9,0 FR 85 SX
FSG 400/4 400 420 4 1240 1780 760 970 1940 2500 250 1,0-3,0 7,0-12 FR 85 SX
FSG 400/5 400 450 5 1240 1780 760 970 1940 3000 250 1,0-3,0 7,0 - 12,0 FR 85 SX
FSG 400/6 400 520 6 1240 1780 760 970 1940 3000 250 1,0-3,0 7,0 - 12,0 FR 85 SX - FR 128 SX

* price of the product vat excluded

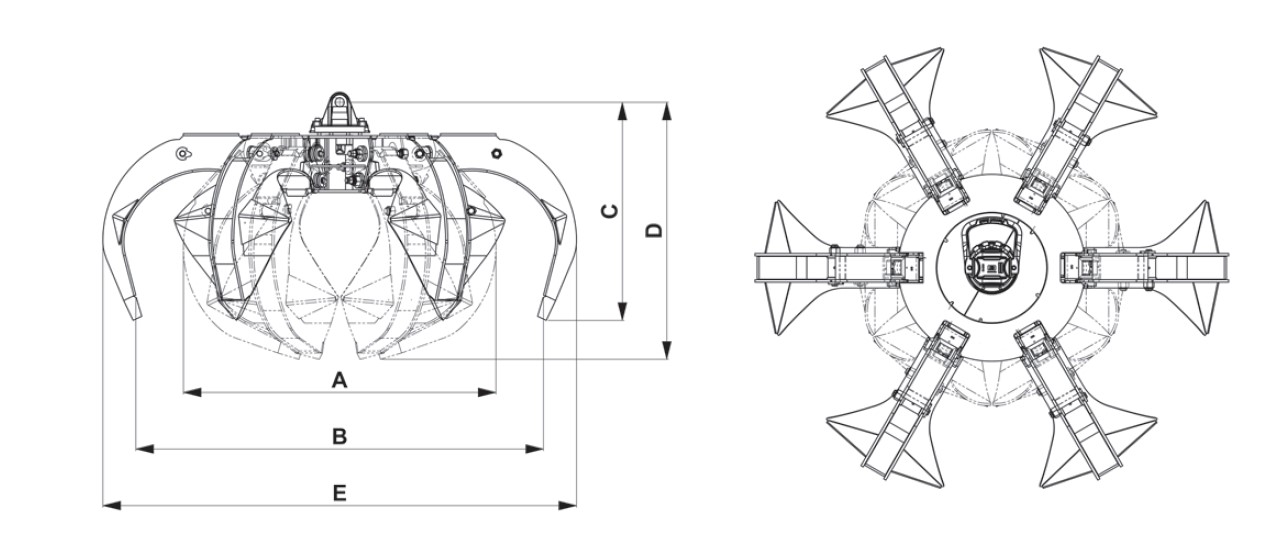

Technical schema
Documentation PDF
Catalog FSG polyp grabs
