FSB

Square and rectangular models

Stabilizer pads PE H.D. 1000 in high resistant polyetylene

From € 37,00
Uses
boom trucks

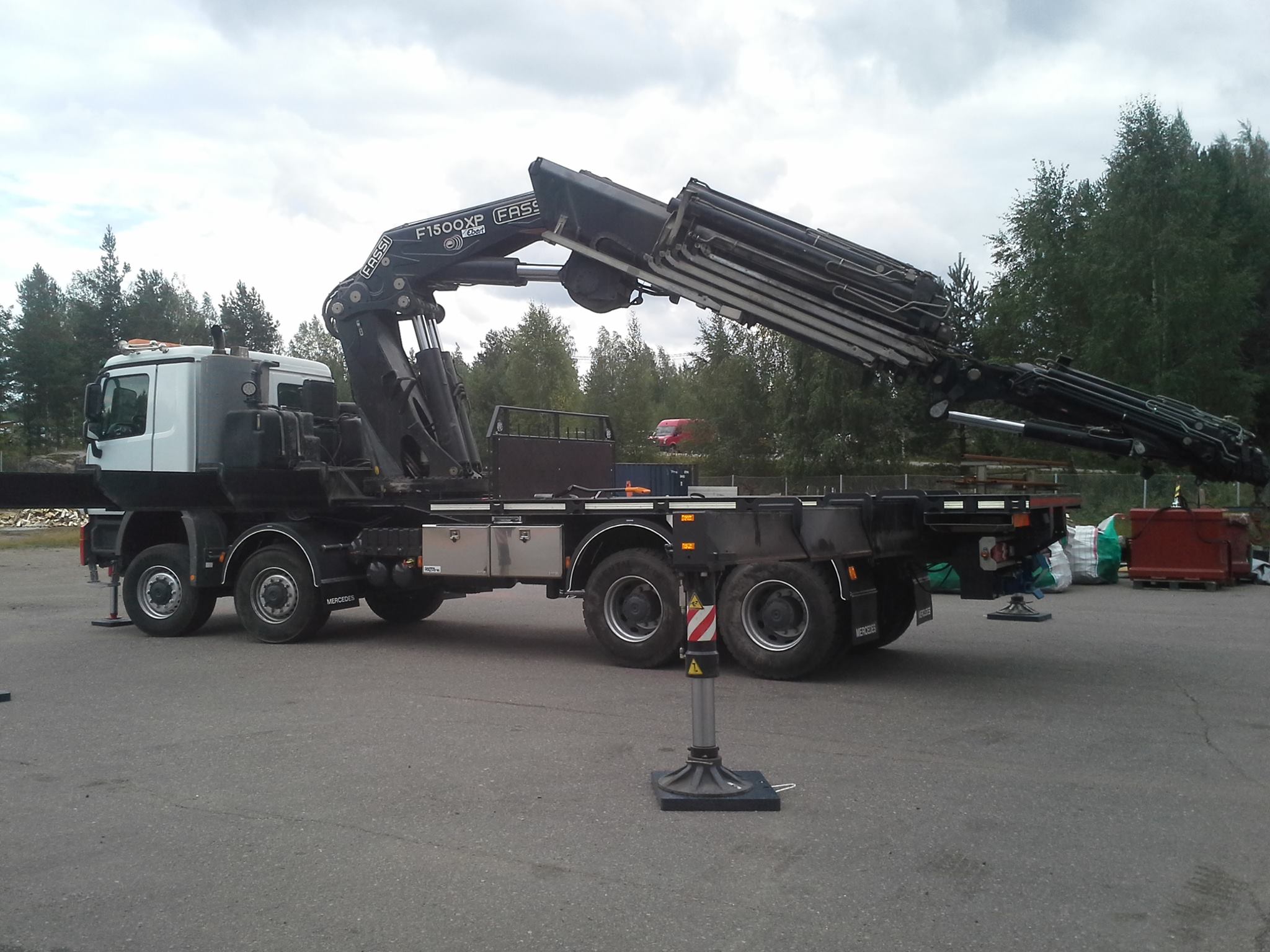

Suitable for crane
Suitable for aerial platforms
Description

Stabilizer pads PE H.D. 1000 in high resistant polyetylene. Possibility to privide models with special dimensions, compliance to the standards indicated

Technical table
Models Dimension Weight Capacity Cranes (up to) Groove
Um cm kg ton Ton/m mm
FSB 20 20x20x3 1 6 6 120
FSB 25 25x25x3 1,8 7 7 120
FSB 30 30x30x2 1,7 8 8 220
FSB 30 30x30x3 2,5 11 12 220
FSB 30 30x30x4 3,5 13 18 220
FSB 40 40x40x4 6 17 20 300 €37,00
FSB 40 40x40x5 8 19 25 300 €42,00
FSB 50 50x30x2 2,87 10 12 200 x 460
FSB 50 50x50x4 10 24 30 300
FSB 50 50x50x5 12,5 29 50 300
FSB 50 50x50x6 15 31 60 300 €75,00
FSB 60 60x30x4 7 19 22
FSB 60 60x40x4 9 24 25 300
FSB 60 60x60x4 14,4 34 40 400
FSB 60 60x60x5 18 36 90 400
FSB 60 60x60x6 21 41 100 510 €106,00
FSB 70 70x70x6 29 43 110 400
FSB 80 80x80x5 32 47 120 500
FSB 80 80x80x6 38 50 140 500
FSB 100 100x100x4 39 54 150 500
FSB 100 100x100x5 48 58 160 500
FSB 100 100x100x6 58 72 180 500
FSB 100 100x100x8 78 115 200 500
FSB 120 120x120x8 115 144 250 500
FSB 140 140x140x4 73,5 70 180 500 €50,00

* price of the product vat excluded

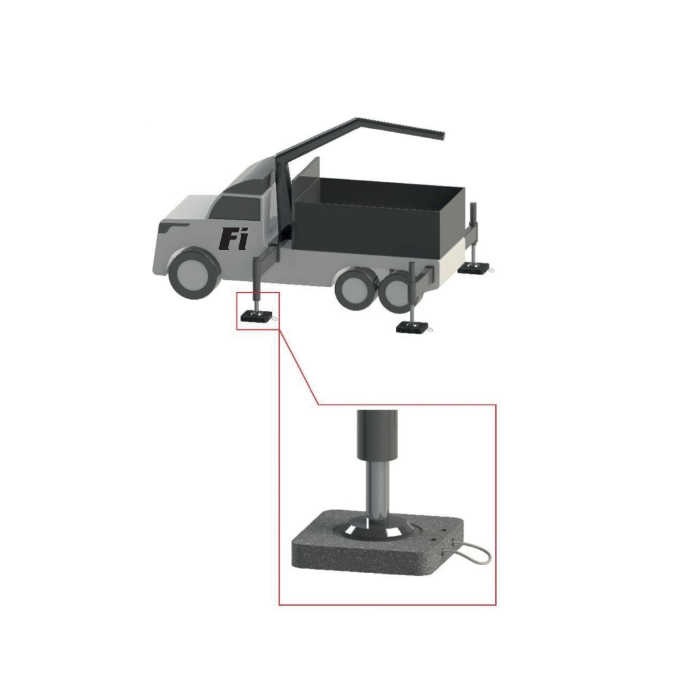

Technical schema
Documentation PDF
Catalog FSB
