FCB SX/2

Clamshell bucket with double cylinder

Clamshell bucket with double cylinder

Uses
boom trucks
Suitable for loaders
Suitable for excavator
Description

Clamshell bucket with two orizonatal cylinders with great intake, especially syuitable for heavy duty works.

Technical table
Models Capacity Weight Teeth A B C D L Load capacity Closing force Pressure Suitable for loader Suitable for excavator Suggested rotator
Um lt kg n° mm mm mm mm mm kg daN bar ton* ton** type
FCB 800 SX/2 800 710 6 1400 2270 1180 880 860 2500 4113 250 1,8 - 2,8 10 - 18 FR 85 SXF
FCB 900 SX/2 900 850 8 1400 2270 1180 880 1050 3000 4113 250 2,0 - 3,0 12 - 20 FR 128 SXF
FCB 1000 SX/2 1000 880 10 1400 2270 1180 880 1250 3500 4113 250 2,0 - 3,0 15 - 25 FR 128 SXF
FCB 1200 SX/2 1200 1100 12 1400 2270 1180 880 1500 4000 4113 250 2,5 - 3,5 15 - 25 FR 175 DBX F
FCB 2000 SX/2 2000 1580 14 1400 2270 1180 880 2000 4500 5078 250 2,5 - 3,5 15 - 28 FR 175 DBX F

* price of the product vat excluded

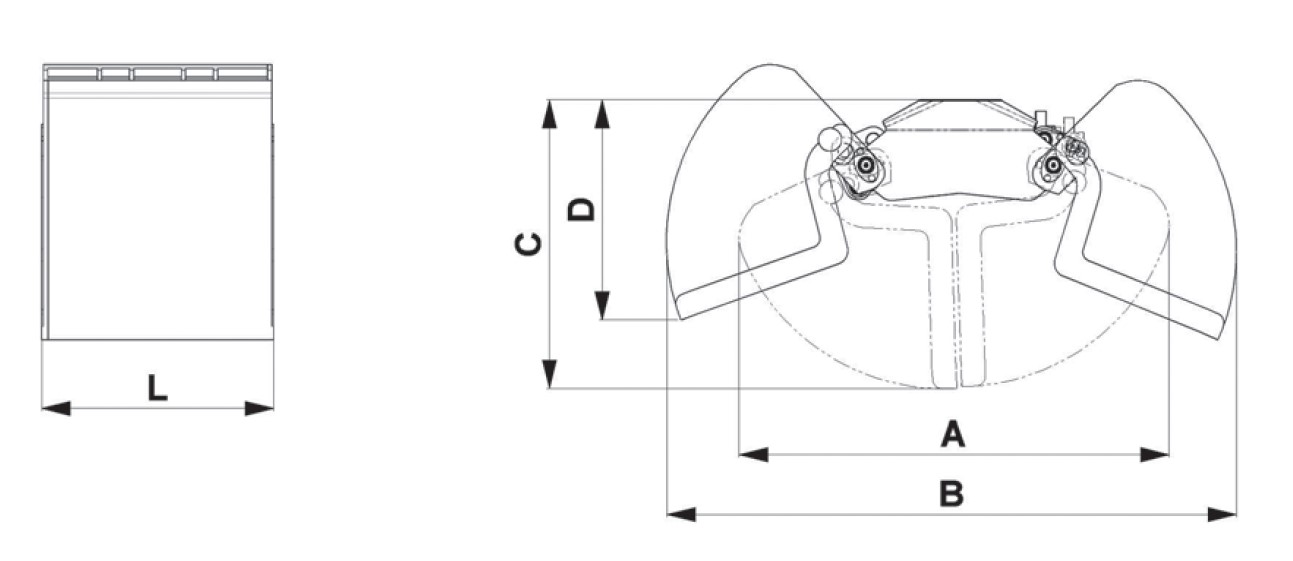

Technical schema
Documentation PDF
Catalogue FCB SX/2
