Hydraulic and machinery rotators Adapter flanges
Adapter flange for shaft rotator
Adapter flanges
Adapter flange for shaft rotator
Uses
Description
Adapter flange for shaft rotator
Technical table
| Models | A | B | N. holes | Weight | Suggested rotator |
|---|---|---|---|---|---|
| Um | mm | mm | - | kg | - |
| FA50254F | 50 | 25 | 4 | 7 | FR 35 |
| FA59304F | 59 | 30 | 4 | 7 | FR 50 |
| FA593010F | 59 | 30 | 10 | 10 | FR 50 |
| FA68304F | 68 | 30 | 4 | 7 | FR 55 - FR 85 SX |
| FA683010F | 68 | 30 | 10 | 10 | FR 55 - FR 85 SX |
| FA69304F | 69 | 30 | 4 | 7 | FR 55 - FR 85 SX |
| FA693010F | 69 | 30 | 10 | 10 | FR 55 - FR 85 SX |
| FA783510F | 78 | 35 | 10 | 12 | FR 128 SX |
* price of the product vat excluded

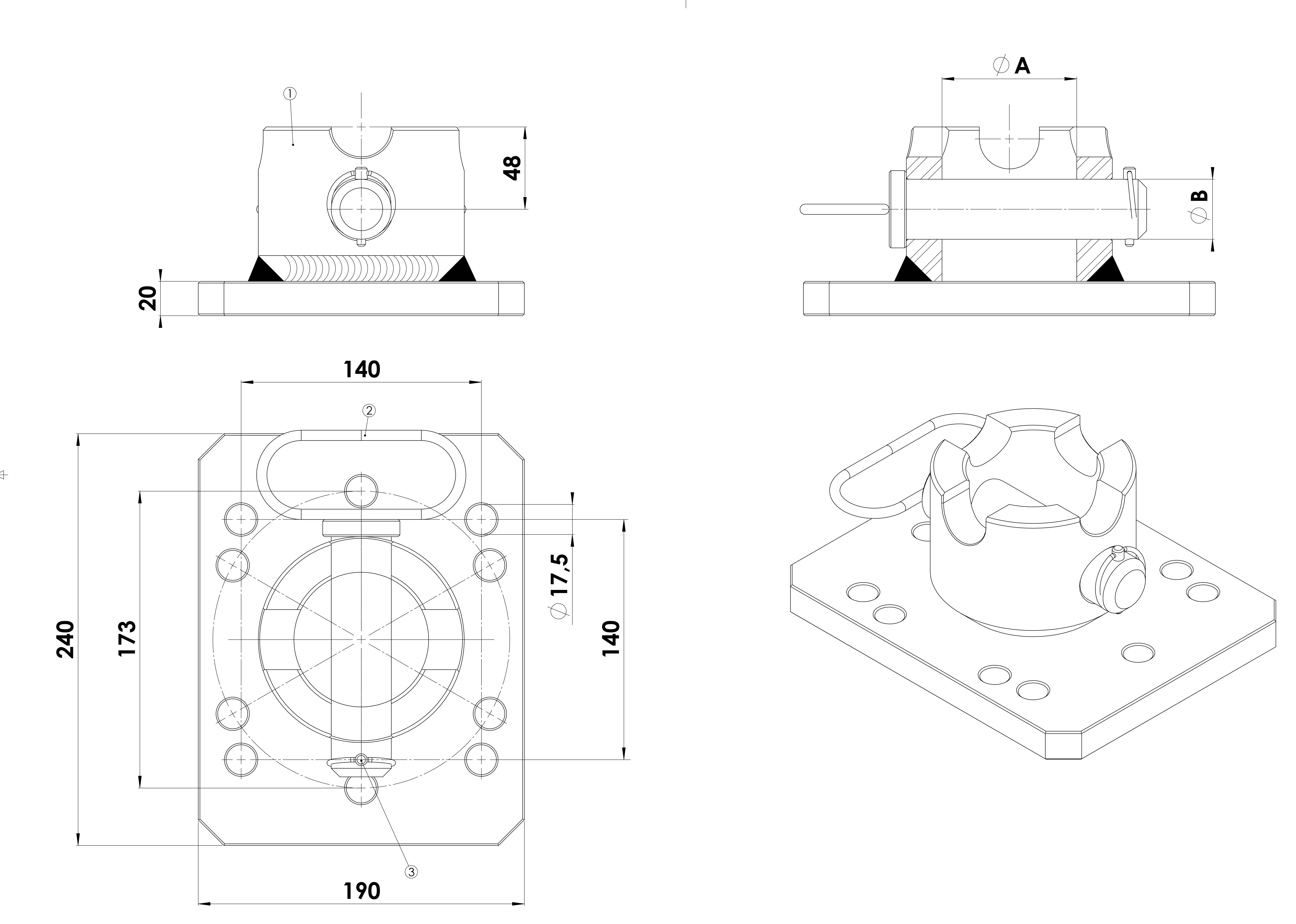

Technical schema
