Electric Worm Gear recovery winches

Electric Worm Gear recovery winches.

Uses
boom trucks
Suitable for loaders
Suitable for excavator
Description

Electric Worm Gear recovery winches, with pulling capacities from 1000 kg to 3600 kg (CE) available also NON-CE version with 5700 kg. CE Version (EN 14492-1): load limiting device + batteries cut-off required.

Technical table
Models CE EN 14492-1 First line pull Ø Rope Suggested rope Max rope Max / l 12/24 V Max speed Weight A B C D E F
Um - kg mm m m Ampere m/min kg mm mm mm mm mm mm
FIRE 1000 WG* X 1000 6 20 36 175/90 6,4 44 260 134 190 125 430 336
FIRE 1300 WG* X 1300 6 20 36 180/90 5,5 44 260 134 190 125 430 336
FIRE 2.7 C WG X 2700 8 25 39 270/135 5,2 39 277 162 193 90 750 336
FIRE 2.7 M WG* X 2700 8 30 50 270/135 5,2 40 277 211 193 90 750 336
FIRE 2.7 L WG X 2700 8 40 65 270/135 5,2 43 277 350 193 90 820 336
FIRE 3.6 C WG X 3600 10 24 30 280/140 4,5 39 277 162 193 90 750 336
FIRE 3.6 M WG* X 3600 10 30 32 280/140 4,5 40 277 211 193 90 750 336
FIRE 3.6 L WG X 3600 10 40 55 280/140 4,5 43 277 350 193 90 820 336
FIRE 5.0 C WG - 5000 10 24 30 280/140 4,5 39 277 162 193 90 750 336
FIRE 5.0 M WG* - 5000 10 30 32 280/140 4,5 40 277 211 193 90 750 336
FIRE 5.0 L WG - 5000 10 40 55 280/140 4,5 43 277 350 193 90 820 336

* price of the product vat excluded

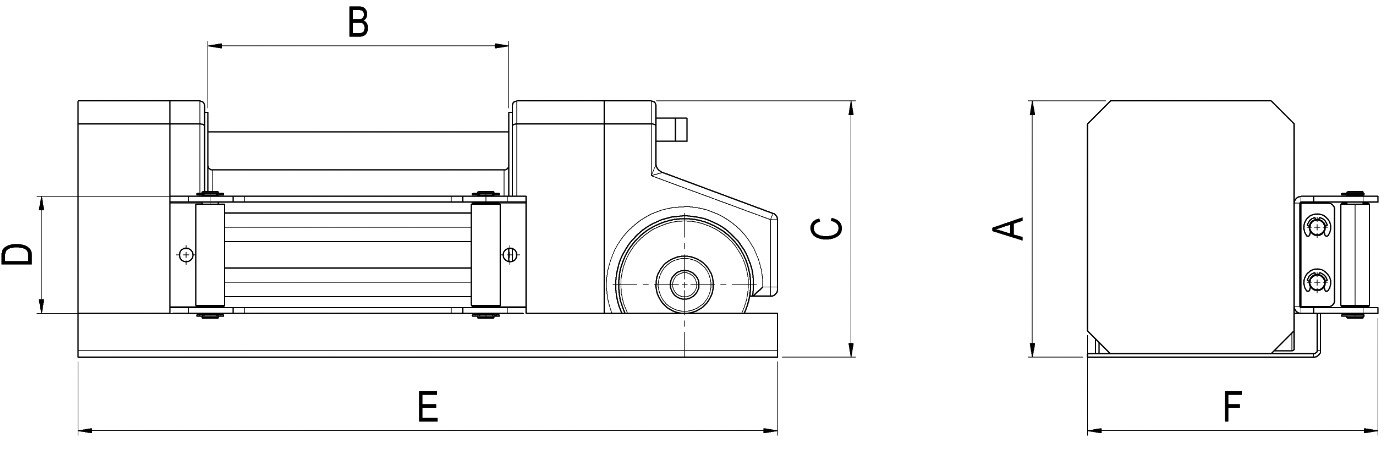

Technical schema
